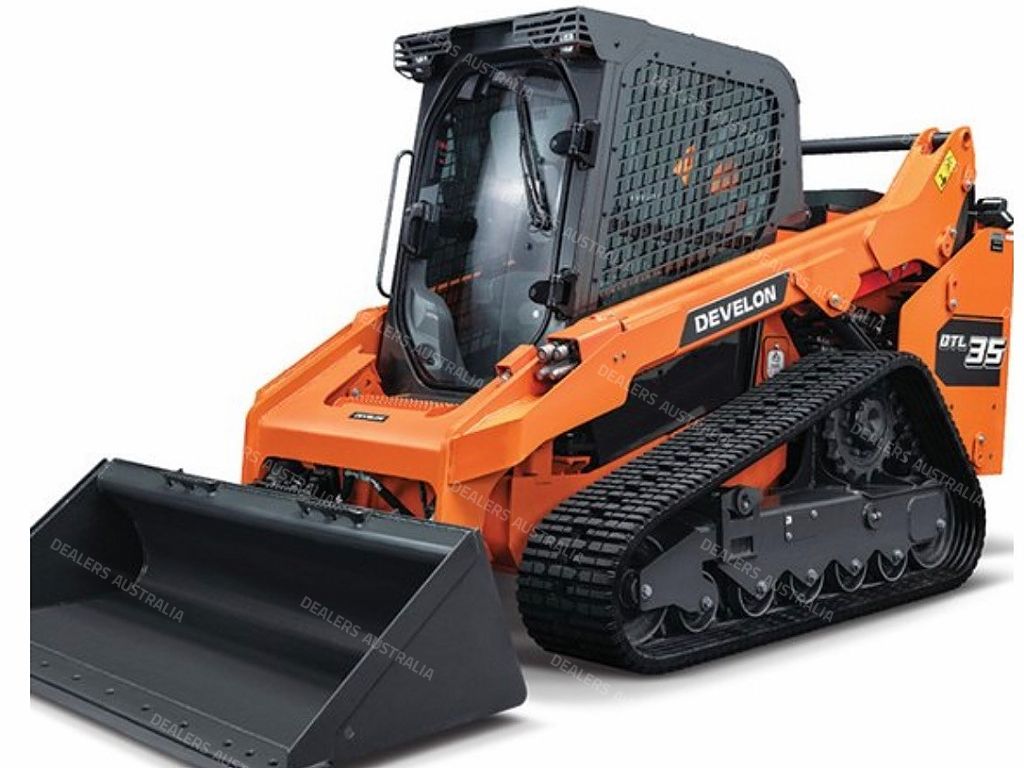

DEVELON DTL35 TRACKED SKID STEER LOADER for sale

FOLLOW US FOR ALL NEW LISTINGS: @dwlmachinery

Ph: Andrew (02) 8311 1321 or 1300 DIAL DWL

ENGINE

Make DEVELON

Model D34

Emissions certification EPA Tier 4 final

Number of cylinders 4

Rated power, gross (hp per SAE J1995) 115.3 hp (86 kW) @ 2400 rpm

Rated power, net (hp per SAE J1349) 102.6 hp (76.5 kW) @ 2400 rpm

Max. torque, net (SAE J1995) 339.2 lbf.ft. (46.9 kfgm) @ 1400 rpm

Displacement 208 in.3 (3.4 L)

Bore and stroke 3.86 in. x 4.45 in. (98 mm x 113 mm)

Starter 12 V, 4.5 hp (3.3 kW)

Battery 12 V, 150 AH

Asperation Turbocharged

Alternator 12 V, 140 amp

Air cleaner Powercore

Aftertreatment DOC, SCR (no DPF)

DTL35

A Tumbler distance 70.0 (1767 mm)

B Overall length of track 89.3 (2267 mm)

C Length (without bucket) 132.8 (3372 mm)

D Length (bucket on ground) 165.7 (4210 mm)

E Max. reach (arms parallel to ground) 62.3 (1582 mm)

F Bucket pin reach at max. lift 20.1 (510 mm)

G Reach at max. lift and dump 46.3 (1175 mm)

H Ground clearance 9.7 (247 mm)

I Height to top of cab 84.0 (2133 mm)

J Max. overall height 169.4 (4304 mm)

K Bucket pin height at max. lift 129.1 (3280 mm)

L Clearance at max. lift and dump 96.7 (2457 mm)

M Cabin height above house

400 mm shoe 76.8 (1951 mm)

450 mm shoe 78.8 (2001 mm)

N Track gauge 61.1 (1551 mm)

O Bucket width (factory bucket) 80 (2032 mm)

P Departure angle 31.6

Q Rollback angle 25

R Rack back angle at max. height 25

S Max. dump angle 40.8

T Turning radius from center, rear 75.7 (1922 mm)

U Turning radius from center, coupler 62.3 (1583 mm)

V Turning radius from center, bucket 99.9 (2537 mm)

MACHINE DIMENSIONS

DRIVE SYSTEM

Travel speed [low high] 6.1 9.2 mph (9.8 14.8 km/h)

Max. traction force (drawbar pull) 10251.3 lbf. (45.6 kN)

REFILL CAPACITIES

Fuel tank 29.0 gal. (110 L)

DEF tank 4.0 gal. (15 L)

Cooling system (radiator capacity) 3.7 gal. (14 L)

Engine oil 3.9 gal. (14.6 L)

Hydraulic tank 10.6 gal. (40 L)

Hydraulic system 19.2 gal. (72.7 L)

HYDRAULICS

Main pump (STD) 22.2 gpm (84 L/min.) @ 2400 rpm

Main pump (high) (US30, US31) 39.9 gpm (151.2 L/min.) @ 2400 rpm

Pressure (STD) 3335.9 psi (23000 kPa)

Pressure (high) (US30, US31) 4061.1 psi (28000 kPa)
