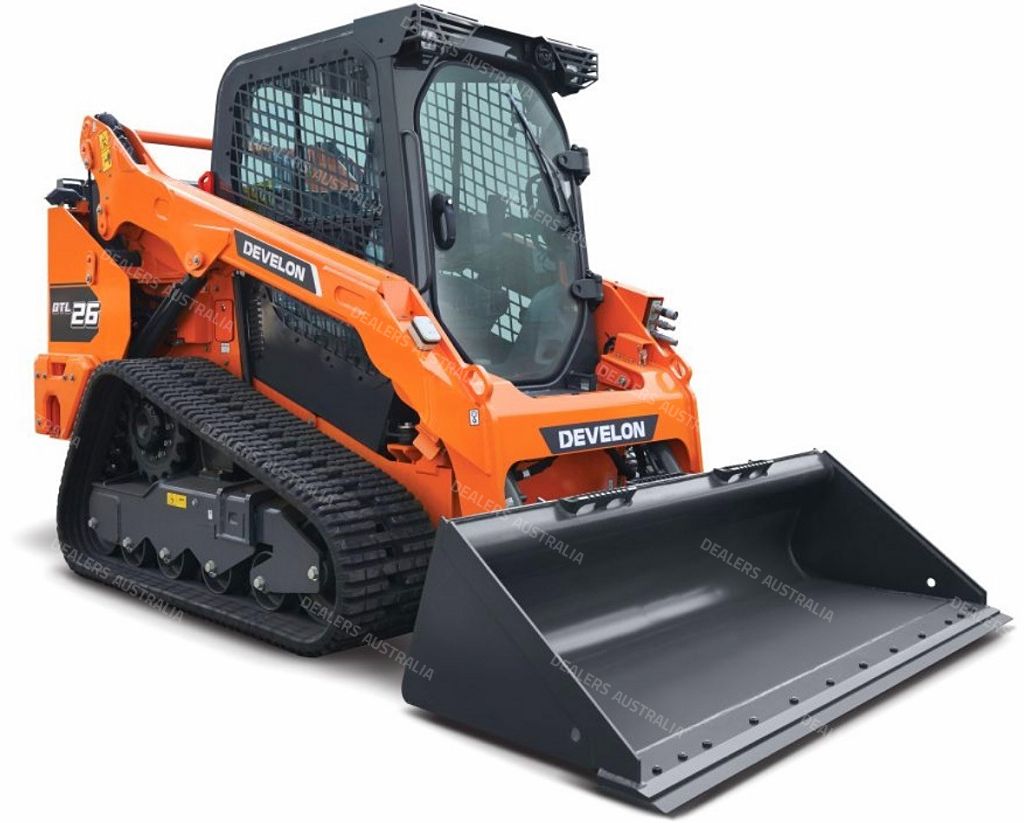

DEVELON DTL26 TRACKED SKID STEER LOADER for sale

FOLLOW US FOR ALL NEW LISTINGS: @dwlmachinery

Ph: Andrew (02) 8311 1321 or 1300 DIAL DWL

Make DEVELON

Model DTL26

Emissions certification

Number of cylinders 4

Rated power, gross (hp per SAE J1995) 72.7 PS (53.5 kW) @ 2600 rpm

Rated power, net (hp per SAE J1349) 72.7 PS (53.5 kW) @ 2600 rpm

Max. torque, net (SAE J1995) 280 Nm @ 1,600 rpm

Displacement 2,392 cc

Bore and stroke 90 x 94 mm

Starter 12 V x 3.3 kW

Battery 12 V, 100 AH

Asperation

Alternator 12 V, 90 A

Air cleaner Powercore

Aftertreatment DOC (Diesel Oxidation Catalyst)

DTL26

A Tumbler distance 59.1 (1502 mm)

B Overall length of track 78.8 (2002 mm)

C Length (without bucket) 120.1 (3052 mm)

D Length (bucket on ground) 153.1 (3891 mm)

E Max. reach (arms parallel to ground) 61.3 (1558 mm)

F Bucket pin reach at max. lift 22.2 (566 mm)

G Reach at max. lift and dump 43.8 (1114 mm)

H Ground clearance 8.8 (226 mm)

I Height to top of cab 83.3 (2116 mm)

J Max. overall height 162.8 (4137 mm)

K Bucket pin height at max. lift 123.8 (3145 mm)

L Clearance at max. lift and dump 89.9 (2284 mm)

M Cabin height above house

400 mm shoe 71.6 (1821 mm)

450 mm shoe 74.8 (1901 mm)

N Track gauge 59 (1501 mm)

O Bucket width (factory bucket) 72 (1829 mm)

P Departure angle 32

Q Rollback angle 25

R Rack back angle at max. height 86

S Max. dump angle 47.5

T Turning radius from center, rear 68.7 (1747 mm)

U Turning radius from center, coupler 60.5 (1539 mm)

V Turning radius from center, bucket 92.7 (2356 mm)

MACHINE DIMENSIONS

DRIVE SYSTEM

Travel speed [low high] 9.5 / 14 km/h (FULL OPT.)

Max. traction force (drawbar pull) 45.5 / 30.0 kN

REFILL CAPACITIES

Fuel tank 9.4 kg (92L)

DEF tank

Cooling system (radiator capacity) 40 kg

Engine oil 14.6L

Hydraulic tank 30(26.5)L

Hydraulic system

HYDRAULICS

Main pump (STD) 91 Liter/min @ 2600 rpm

Main pump (high) (US30, US31) 117 Liter/min @ 2600 rpm

Pressure (STD) 241 bar

Pressure (high) (US30, US31) 280bar

ENVIRONMENT

Sound level (2000/14/EC) 100.6 dB(A)

Cabin sound level (ISO 6396) 75 dB(A)
