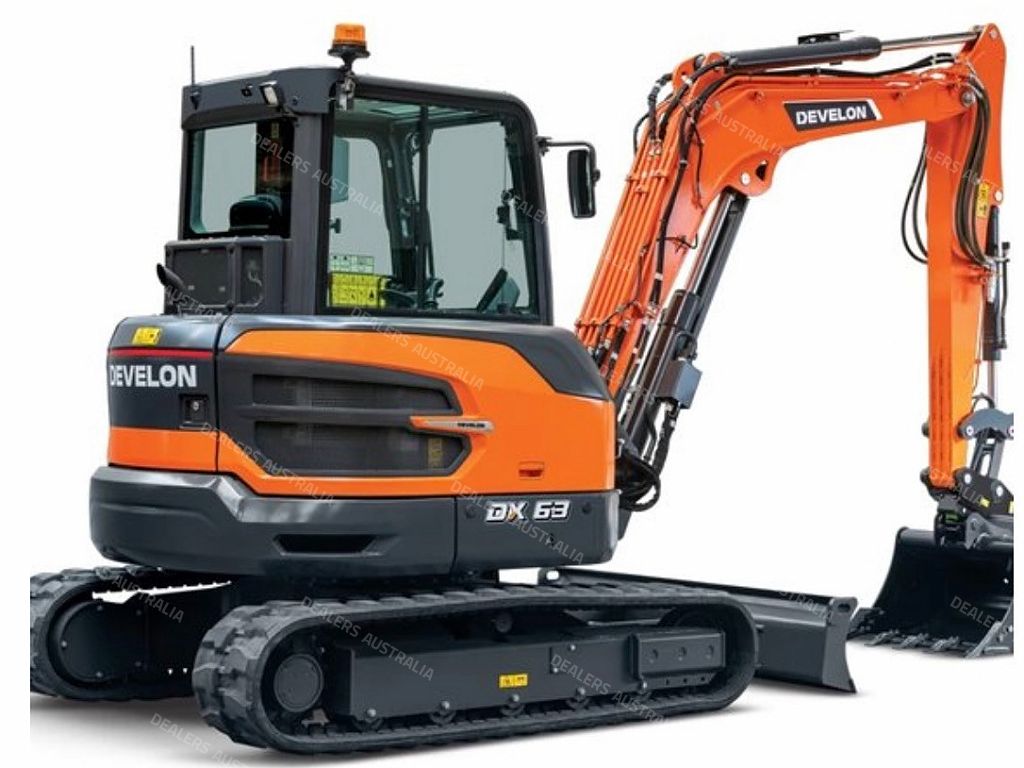

DEVELON DX63Z-7 6.3T TRACKED EXCAVATOR for sale

FOLLOW US FOR ALL NEW LISTINGS: @dwlmachinery

Ph: Andrew (02) 8311 1321 or 1300 DIAL DWL

SPECIFICATIONS DIMENSION & WORKING RANGE

MACHINE DIMENSIONS

WORKING RANGE

ENGINE

Model Develon D24

Number of cylinders 4

Rated power at 2200 rpm SAE J1995 44.3 kW (65 hp)

Max. torque at 1600 rpm 260 Nm

Idle (low - high) 1000 - 2300 rpm

Displacement 2392 cm3

Bore stroke 90 mm 94 mm

Starter 12 V / 2.5 kW

Batteries - Alternator 1 12 V, 100 Ah 12 V, 90 A

Air filter Double element air cleaner

DRIVE SYSTEM

Travel speed (low - high) 2.8 - 4.7 km/h

Maximum traction 4.58 t

Maximum gradeability 35 / 70%

SWING MECHANISM

Maximum swing speed 9.8 rpm

Maximum swing torque 1380 kgfm

HYDRAULICS

Main pump 144.9 l/min

DX62R-7 DX63-7

Implement 280 kgf/cm2

Travel 280 kgf/cm2

Swing 220 kgf/cm2

Unit DX50Z-7M DX55R-7M

Boom type mm 2900 2900

Arm type mm 1900 1900

Bucket capacity m3 0.175 0.175

Undercarriage (track + grouser) - Rubber Rubber

L1 Overall length mm 5631 5571

H1 Overall height

Boom mm 2385

Cab mm 2575

W1 Overall width mm 1980

R1 Rear swing radius mm 1180 1350

H2 Ground clearance mm 208

L2 Rear end distance mm 1180 1350

W2 House width mm 1750

W3 Cab width mm 1150

H3 Height over cover mm 1588

H4 Counterweight clearance mm 628

A1/

A2

Boom swing angle (left/right) 60/53

H5 Track height mm 562

L3 Track length mm 2486

L4 Tumbler distance mm 1990

W4 Track gauge mm 1580

W5 Undercarriage width mm 1980

W6 Shoe width mm 400

etc. Grouser height mm 20

H6 Dozer digging depth mm 460

H8 Dozer lift clearance mm 488

H9 Dozer blade height mm 410

L8 Distance to dozer end mm 1840

Unit DX62R-7 DX63-7

Boom length mm 2900 2900

Arm length mm 1900 1600 1900 1600

Bucket capacity m3 0.175 0.175

A Max. digging reach mm 6610 6310 6440 6140

B Max. digging reach (ground) mm 6485 6175 6315 6005

C Max. digging depth mm 4095 3795 4095 3795

D Max. dumping height mm 4270 4040 4270 4040

E Min. swing radius mm 2850 2685 2680 2515

F Max. digging height mm 6025 5790 6025 5790

G Max. bucket pin height mm 5155 4925 5155 4925

H Max. vertical wall depth mm 2580 2380 2580 2380

I Max. radius vertical mm 5155 4935 4985 4765
