FOR HIRE DEVELON DTL30 TRACKED SKID STEER LOADER

FOR HIRE DEVELON DTL30 TRACKED SKID STEER LOADER

Contact us for further information on availability and rates

1800 SEM HIRE

bookings@semhire.com.au

_______________________

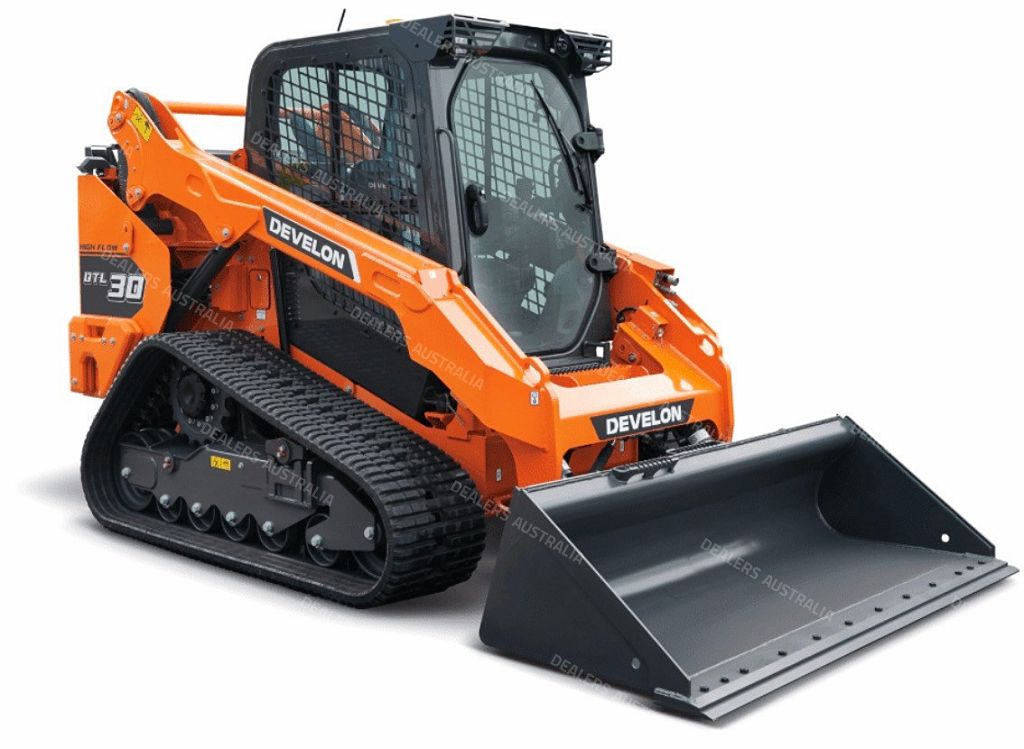

The DEVELON DTL30 Tracked Skid Steer Loader delivers outstanding power, lifting performance, and versatility, making it the ideal machine for earthmoving, landscaping, construction, demolition, and site preparation. Its heavy-duty rubber track undercarriage provides exceptional traction, stability, and low ground pressure, allowing it to work efficiently on soft, uneven, and challenging terrain while minimising surface disturbance.

Powered by a high-performance turbo diesel engine, the DTL30 offers impressive lifting capacity, excellent breakout force, and smooth hydraulic performance to maximise productivity on every job. The spacious operator's cabin is designed for comfort and visibility, featuring ergonomic joystick controls and air conditioning to reduce operator fatigue throughout the working day.

Compatible with a wide range of attachments, including buckets, pallet forks, augers, trenchers, slashers, and more, the DEVELON DTL30 is a highly versatile machine suited to civil construction, agriculture, landscaping, demolition, and material handling applications.

Features:

Rated Operating Capacity: Approx. 1,370 kg

Powerful turbo diesel engine

High-flow hydraulic performance

Heavy-duty rubber track undercarriage

Enclosed air-conditioned cabin

Ergonomic joystick controls

Excellent all-round operator visibility

Quick hitch for fast attachment changes

Ideal for construction, landscaping, demolition, agriculture, and material handling

Available now for short-term and long-term hire. Contact us today for competitive hire rates and availability.

ENGINE

Make DEVELON

Model DTL30

Emissions certification

Number of cylinders 4

Rated power, gross (hp per SAE J1995) 72.7 PS (53.5 kW) @ 2600 rpm

Rated power, net (hp per SAE J1349) 72.7 PS (53.5 kW) @ 2600 rpm

Max. torque, net (SAE J1995) 280 Nm @ 1,600 rpm

Displacement 2,392 cc

Bore and stroke 90 x 94 mm

Starter 12 V x 3.3 kW

Battery 12 V, 100 AH

Asperation

Alternator 12 V, 90 A

Air cleaner Powercore

Aftertreatment DOC (Diesel Oxidation Catalyst)

DTL30

A Tumbler distance 64.1 (1630 mm)

B Overall length of track 83.8 (2130 mm)

C Length (without bucket) 123.1 (3127 mm)

D Length (bucket on ground) 156.1 (3966 mm)

E Max. reach (arms parallel to ground) 62.1 (1579 mm)

F Bucket pin reach at max. lift 20.4 (519 mm)

G Reach at max. lift and dump 47.2 (1200 mm)

H Ground clearance 8.8 (226 mm)

I Height to top of cab 83.3 (2116 mm)

J Max. overall height 169.6 (4308 mm)

K Bucket pin height at max. lift 128.9 (3275 mm)

L Clearance at max. lift and dump 96.8 (2460 mm)

M Cabin height above house

400 mm shoe 76.8 (1951 mm)

450 mm shoe 78.7 (2001 mm)

N Track gauge 61 (1551 mm)

O Bucket width (factory bucket) 80 (2032 mm)

P Departure angle 34

Q Rollback angle 25

R Rack back angle at max. height 87

S Max. dump angle 41

T Turning radius from center, rear 68.8 (1750 mm)

U Turning radius from center, coupler 61.1 (1553 mm)

V Turning radius from center, bucket 98.5 (2504 mm)

MACHINE DIMENSIONS

DRIVE SYSTEM

Travel speed [low high] 9.5 / 14 km/h (FULL OPT.)

Max. traction force (drawbar pull) 45.5 / 30.0 kN

REFILL CAPACITIES

Fuel tank 10 kg (92L)

DEF tank

Cooling system (radiator capacity) 43 kg

Engine oil 14.6L

Hydraulic tank 30(26.5)L

Hydraulic system

HYDRAULICS

Main pump (STD) 91 Liter/min @ 2600 rpm

Main pump (high) (US30, US31) 132.6 Liter/min @ 2600 rpm

Pressure (STD) 230 bar

Pressure (high) (US30, US31) 280bar

ENVIRONMENT

Sound level (2000/14/EC) 99.5 dB(A)

Cabin sound level (ISO 6396) 75 dB(A)
